Obstacle Detector

Detects rockfall, debris, or vehicles on tracks to block train entry and prevent accidents.

Overview

The Obstacle Detector safeguards sections such as overpasses and slopes prone to rockfall or landslide by detecting vehicles, rocks, or soil intrusions, commanding a stop aspect, and preventing trains from entering the affected area.

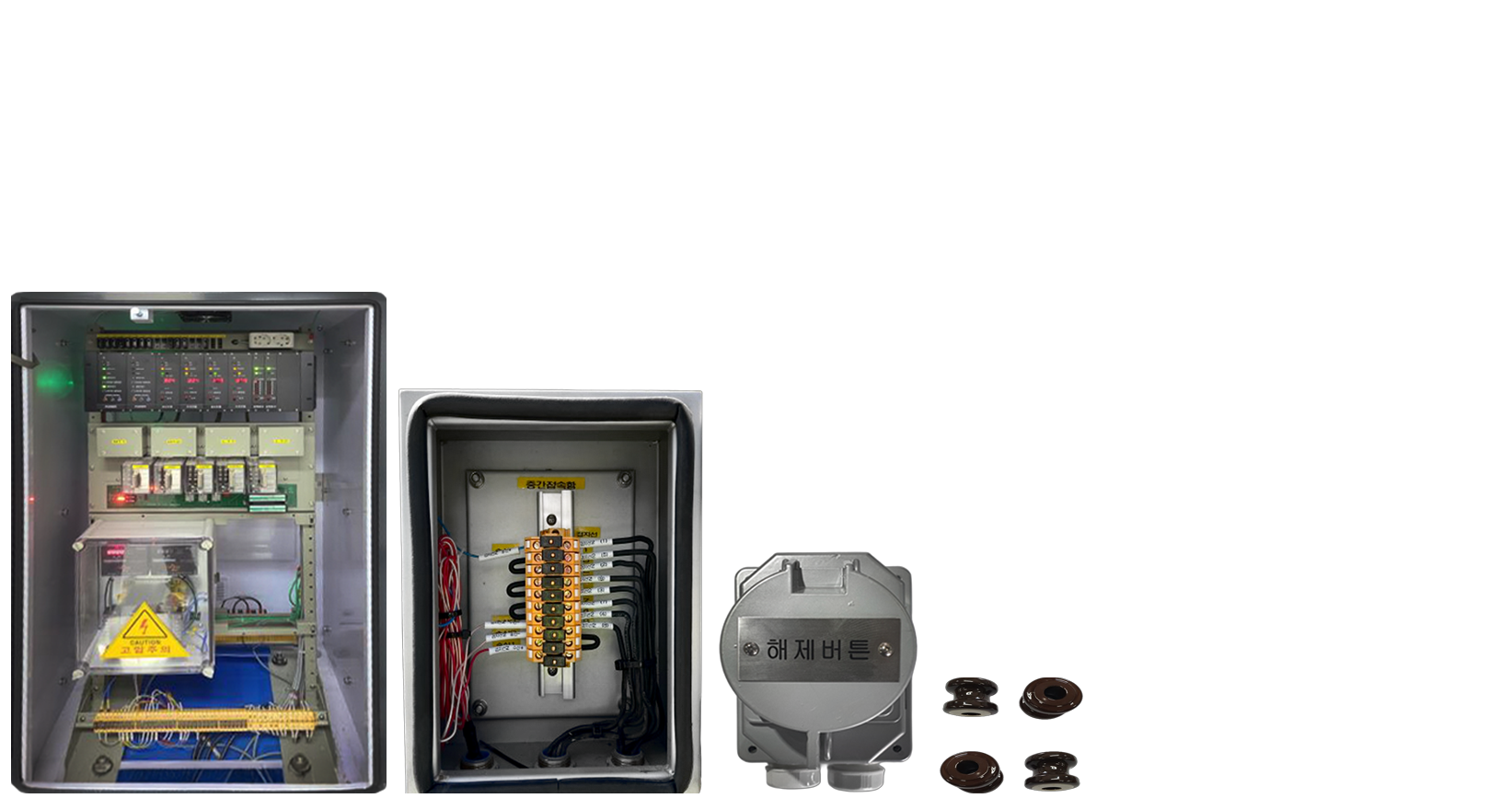

The system includes a Field Control Cabinet, Intermediate Junction Box, Protection Release Button, and Insulator, and interfaces with ABS (Automatic Block System) and electronic interlocking for stable control.

Main Components

  • Field Control Cabinet

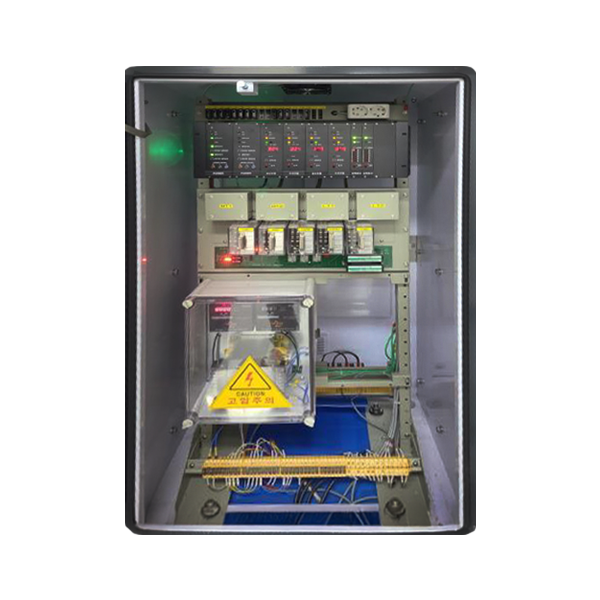

    Field Control Cabinet

    · Reports system status to the master controller and drives alarm/stop commands.

    • Control Equipment
  • Protection Release Button

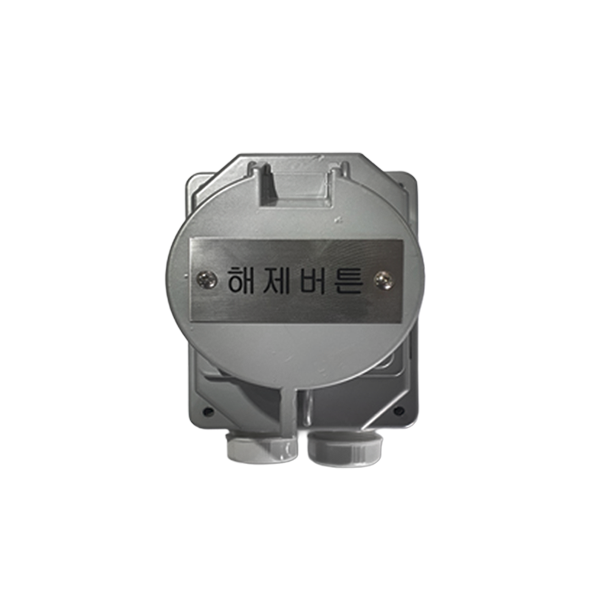

    Protection Release Button

    · Allows manual release by staff in emergencies.

    • Field Equipment
  • Obstacle Sensing Unit

    Obstacle Sensing Unit

    · Detects rockfall and soil intrusion and automatically issues a stop command.

    • Sensing Device
  • Intermediate Junction Box

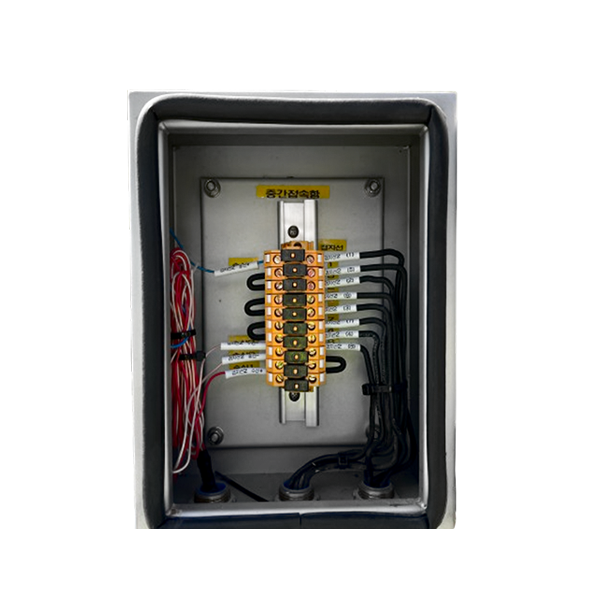

    Intermediate Junction Box

    · Receives signals from the sensing unit and routes them to the field controller.

    • Field Equipment
  • Insulator

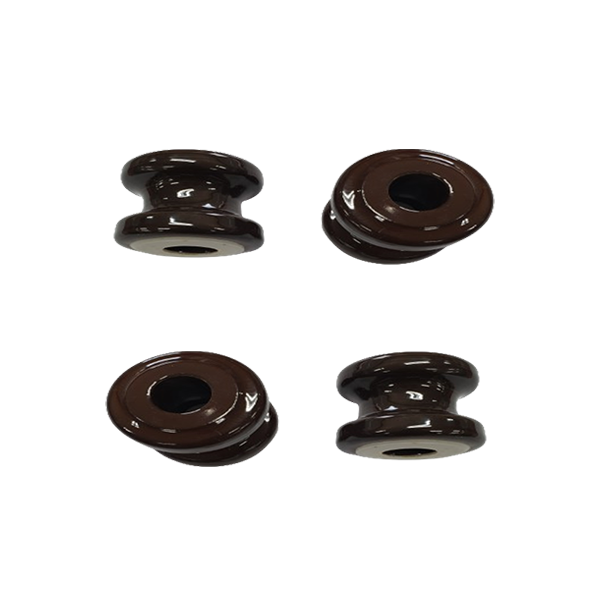

    Insulator

    · Provides electrical insulation and cable fixation with outdoor durability.

    • Accessories
