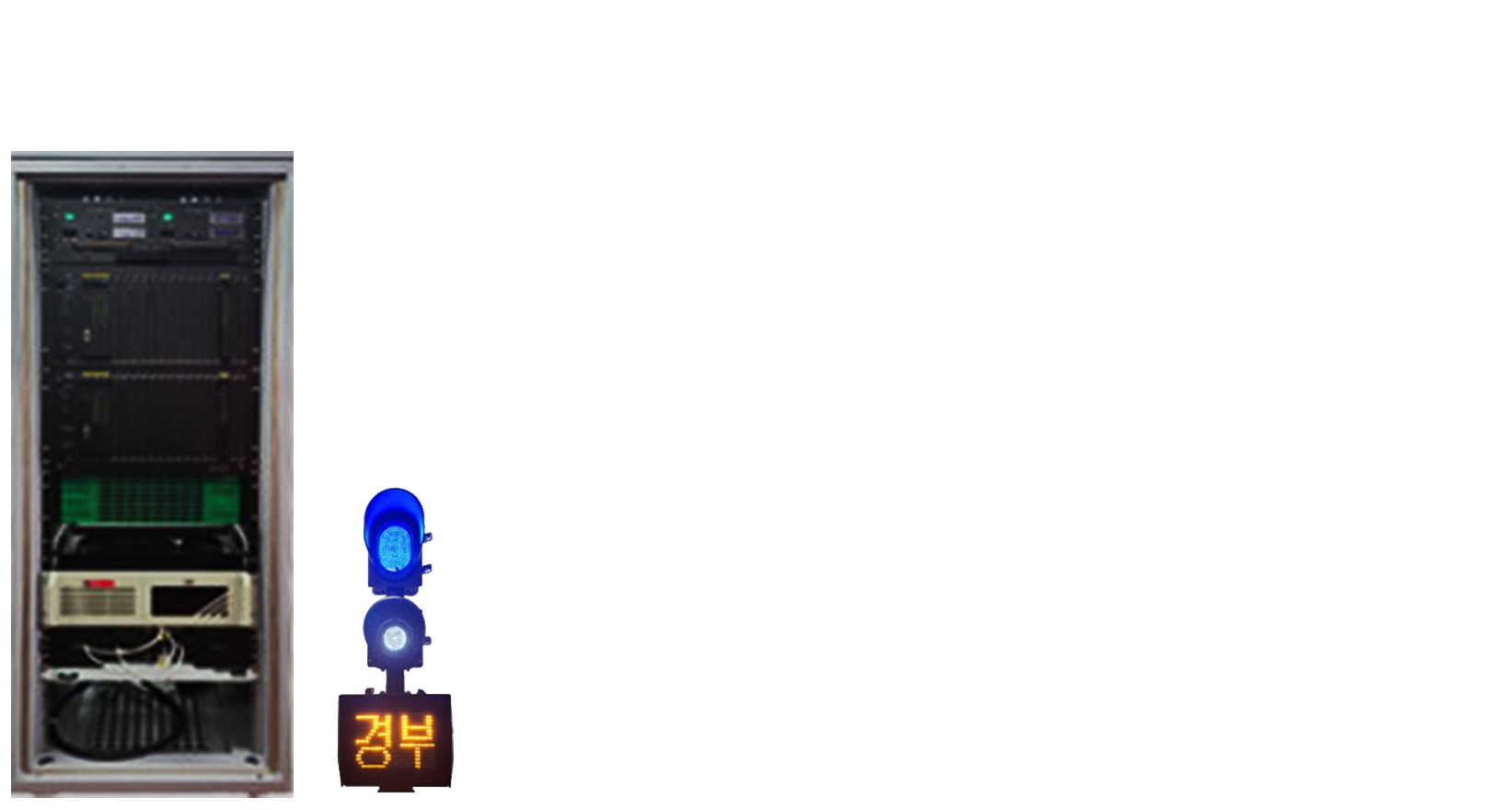

IP Signal
Controls signal aspects and route indication through an optical communication-based control system.
Key Features
-
01
Optical Communication Control
Applies an optical communication-based control method to reduce resource consumption and contribute to carbon neutrality.
-
02
Fault Detection and Status Information Display

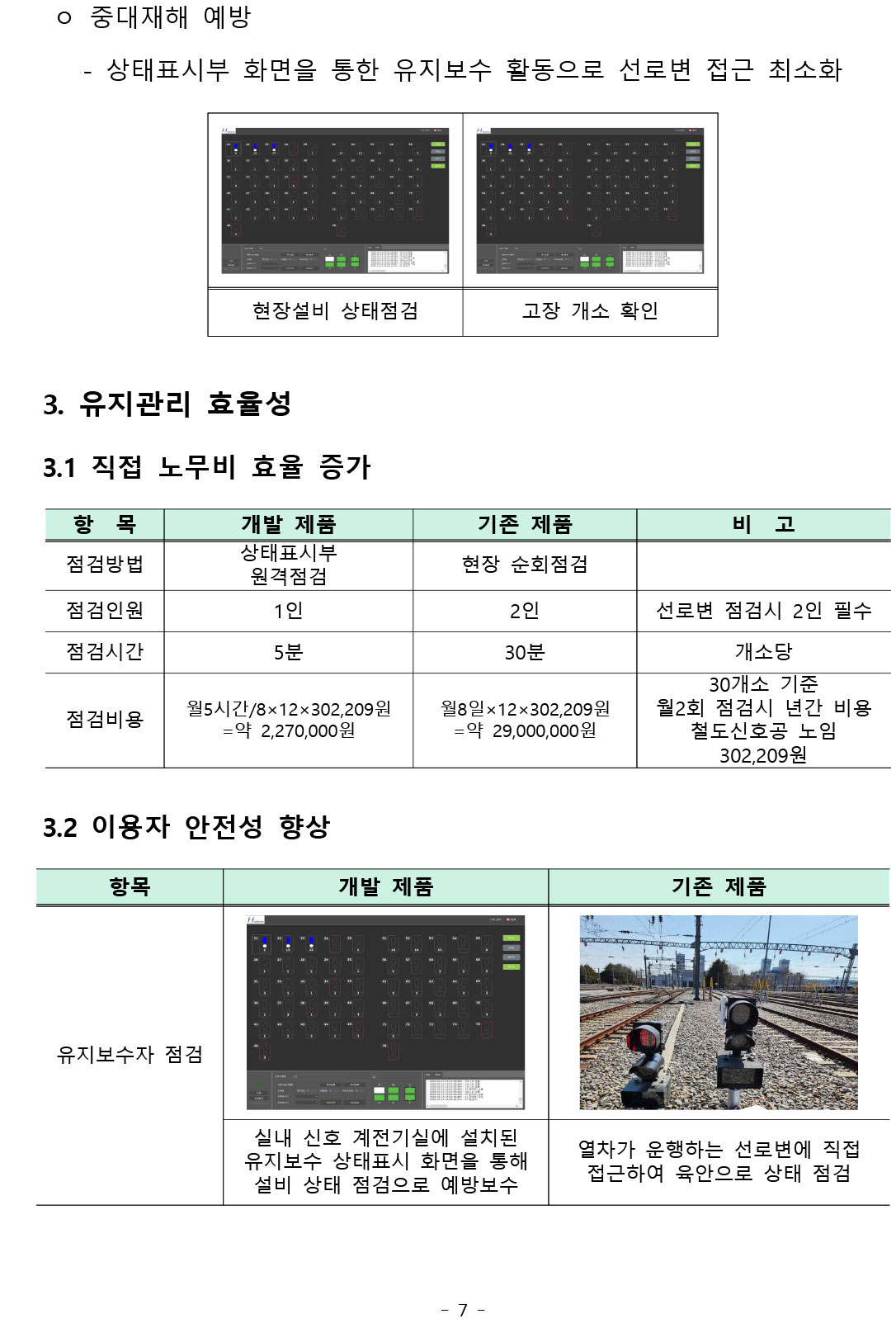

Detects faults and displays alarms to support rapid fault recovery while minimizing trackside access.
Main Components
-

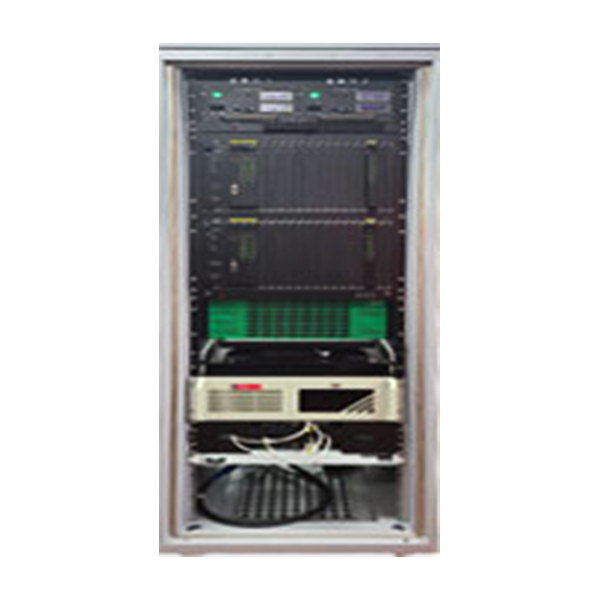

Main Control Unit
· Communicates with signal equipment in the station yard through a ring network and displays operating status in real time.
-
-

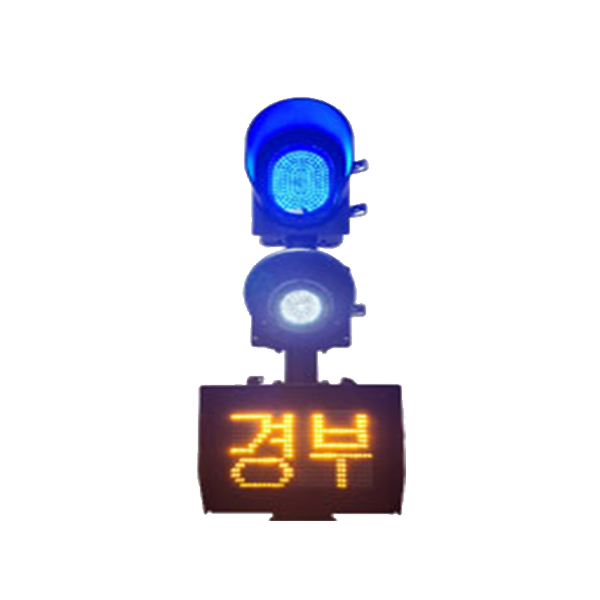

Signal Unit
· Consists of a shunting signal lamp and a no-guidance lamp, with a route indicator installed for multi-route configurations.

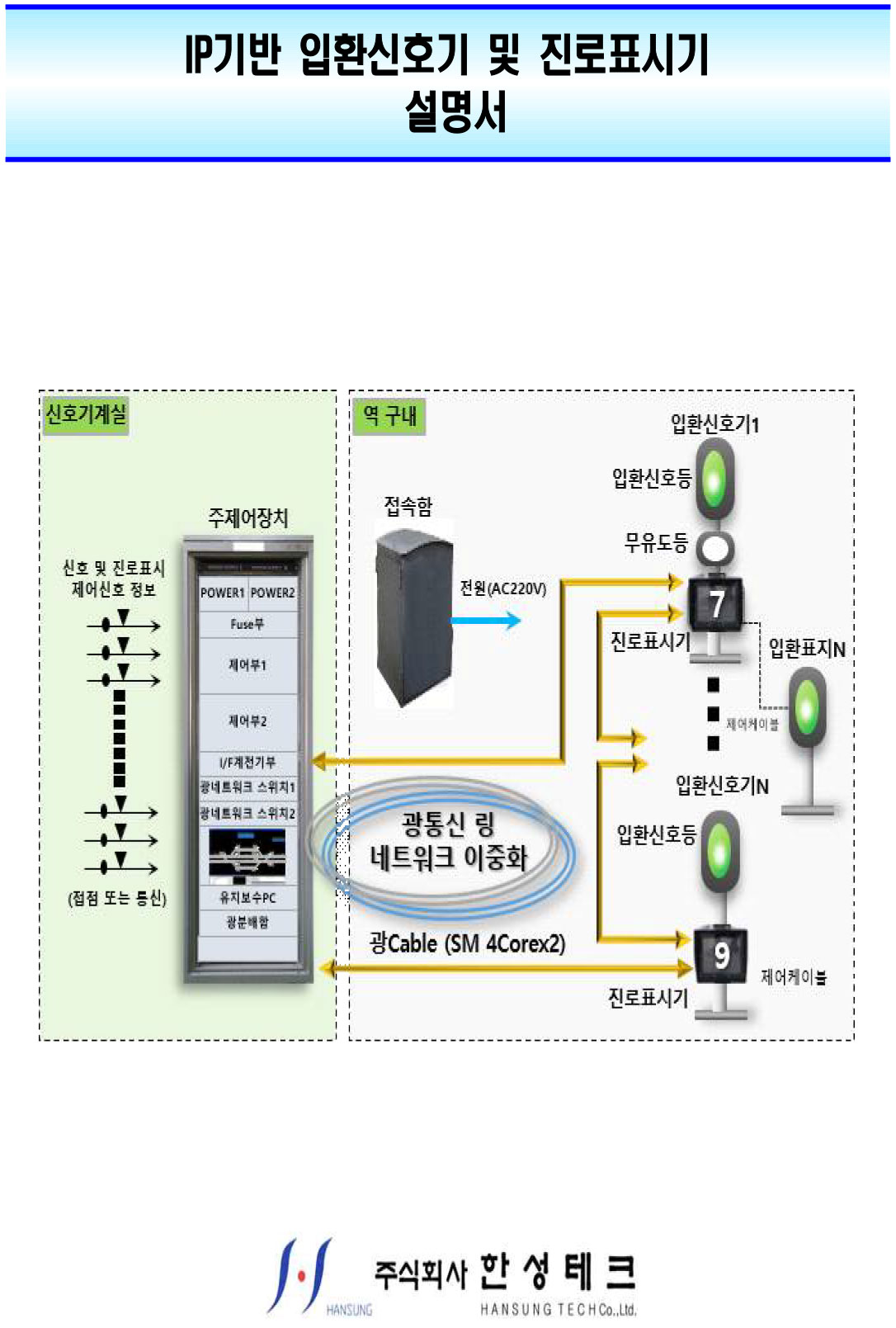

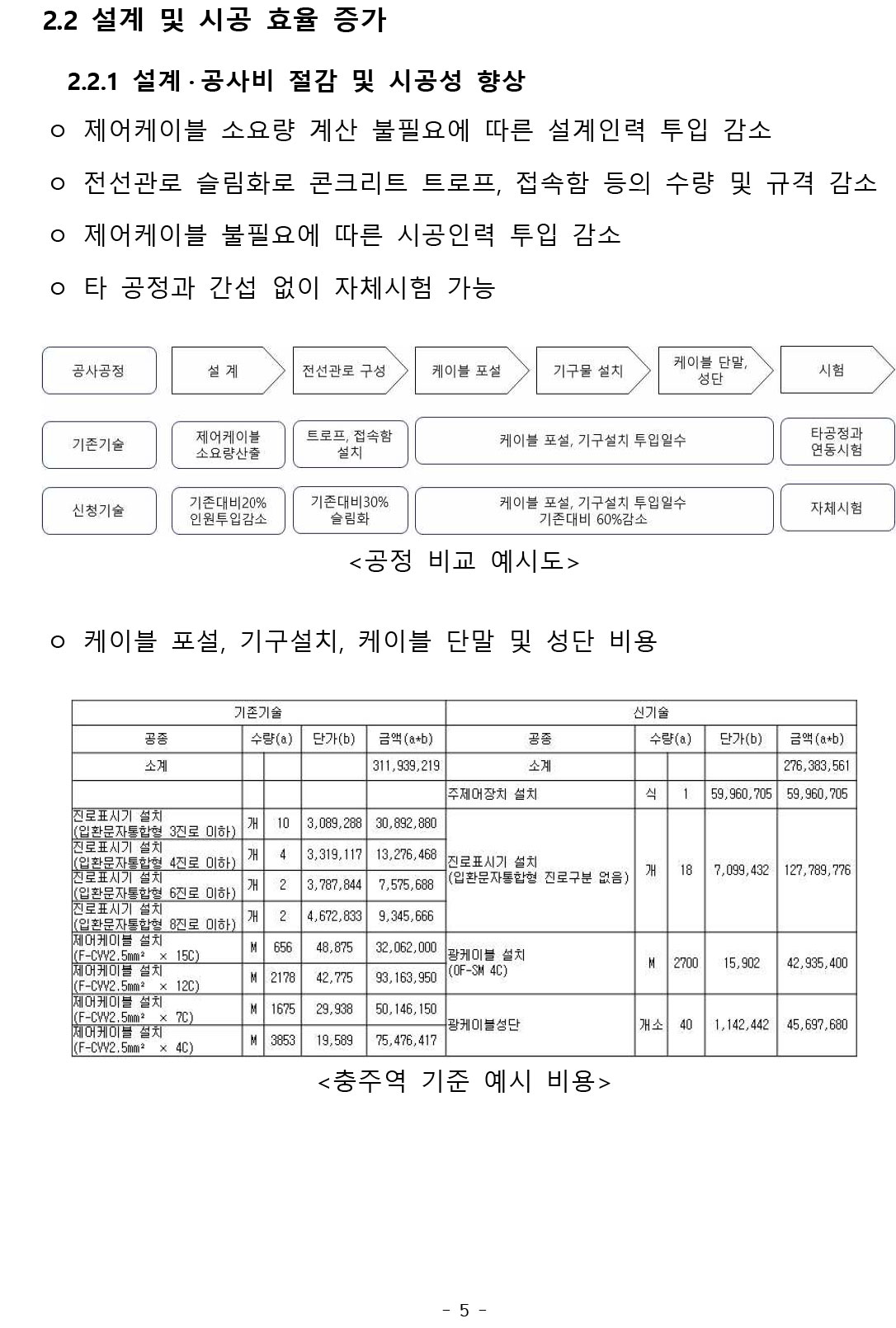

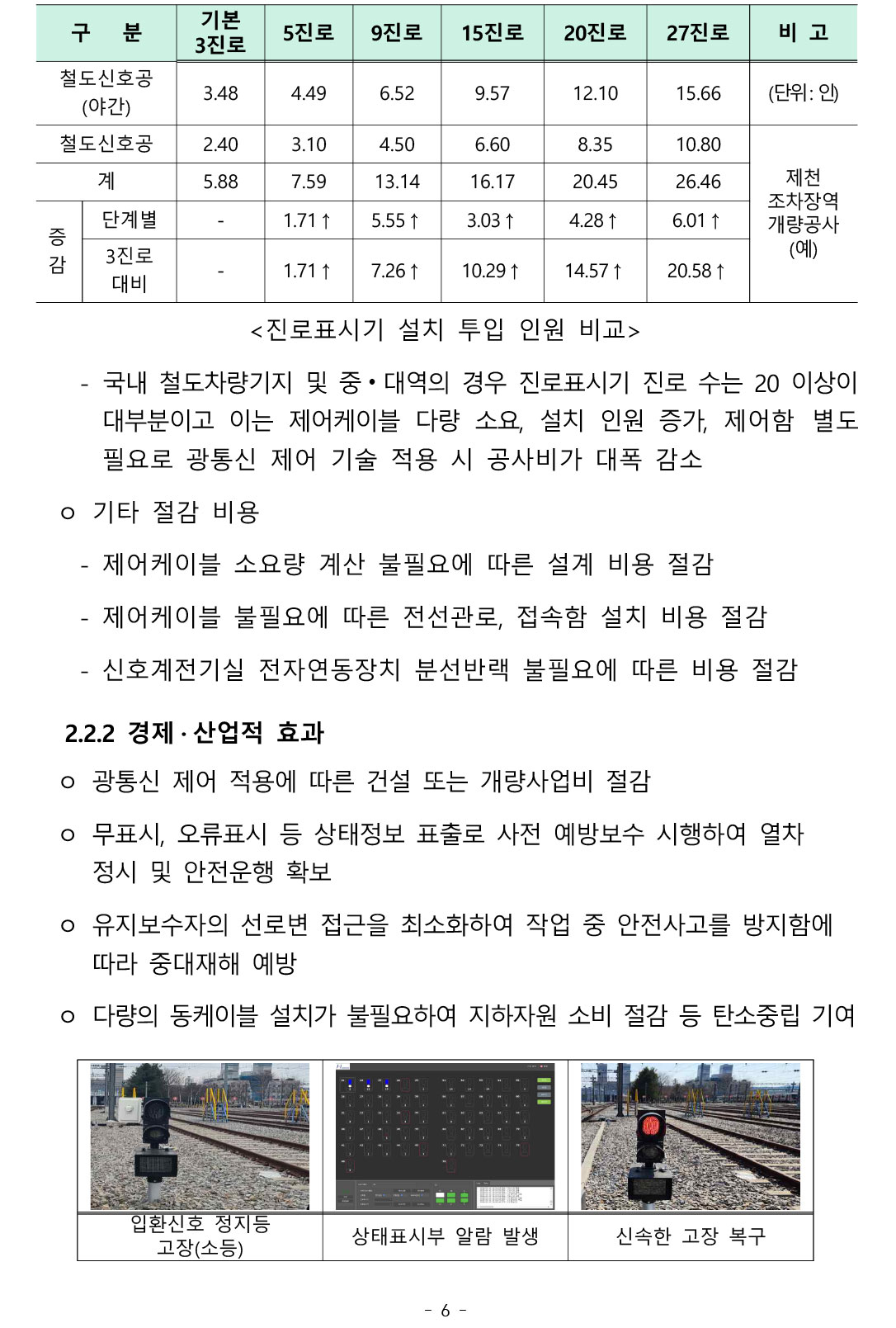

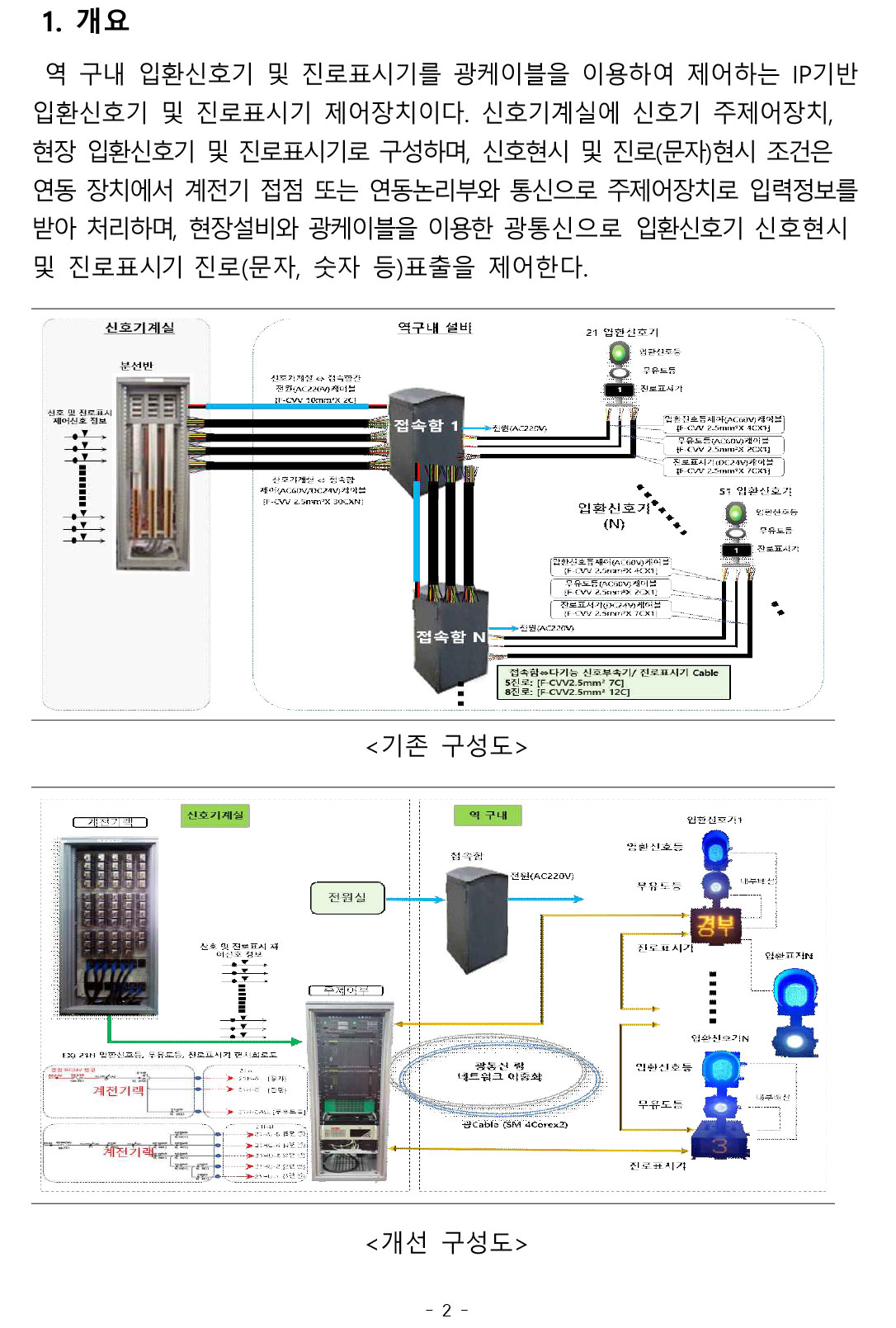

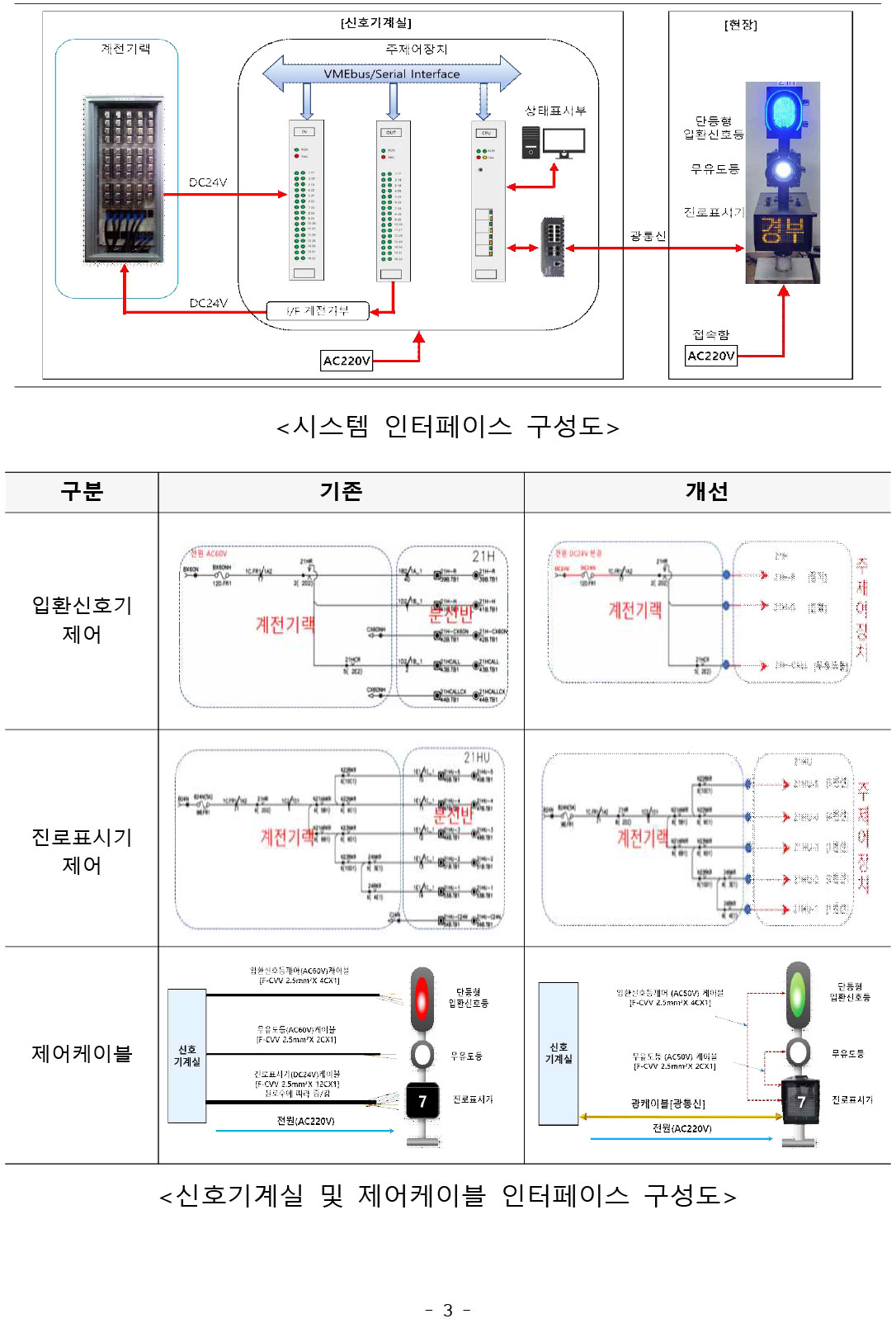

IP Shunting Signal and Route Indicator Manual
